COMPACT EXCAVATORS

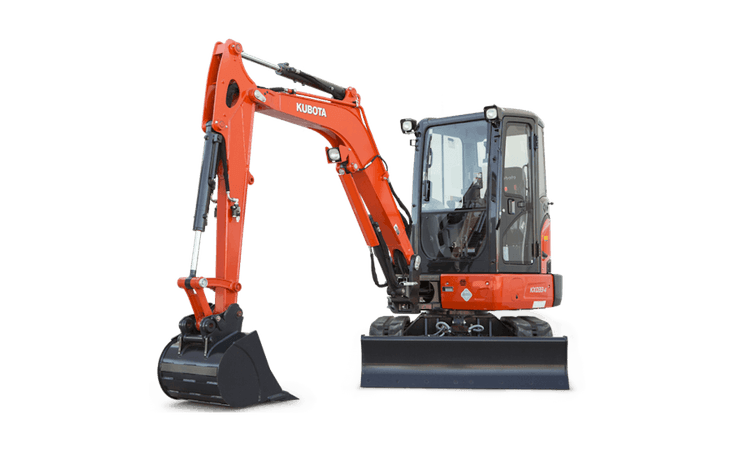

Digging isn’t easy, but the Kubota KX040-4 6-in-1 Blade will make it feel like it is. With 40.4 horsepower and a 5’ 10.9”-wide blade, the Kubota KX040-4 6-in-1 Blade is perfect for getting the job done. Kubota's hydraulic 6-in-1 Blade can be angled right and left, and now, tilted as well. This blade enables six different positions: neutral, floatup, left-end-up, right-end-up, leftend-forward and right-end-forward. This feature makes leveling and backfilling work incredibly easy, even on inclines and uneven terrain, making you more productive and more efficient. Kubota is the world’s #1 selling compact excavator for 20 years.*
*According to 2023 data from Off-Highway Research including all Kubota Group brand sales.
Kubota's hydraulic 6-in-1 Blade can be angled right and left – and now, tilted as well. This blade enables six different positions: neutral, float-up, left-end-up, right-end-up, left-end-forward and right-end-forward. This feature makes leveling and backfilling work incredibly easy, even on inclines and uneven terrain, making you more productive and more efficient.
*Available on KX040-4
Arm Breakout Force, Lbs (kgf)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Blade Height, In (mm)
Blade Width, Ft (mm)
Bucket Breakout Force, Lbs (kgf)
Crawler Length, Ft (mm)
Displacement (cu. In.)
Engine Model
Fuel Reservoir, Gal (l)
Ground Contact Pressure Psi, Kgf (cm2)
Horsepower (gross)
Hydraulic Oil Reservoir / System, Gal (l)
Min. Ground Clearance, In (mm)
Operating Weight, Lbs (kg)
Overall Height, Ft (mm)
Overall Length, Ft (mm)
Overall Width, Ft (mm)
Pump Capacity, G P M ( L P M)
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
4112 (1865)
17.2 (65) / 9.8 (37)
15.2in (385)
5ft 10.9in (1800)
9535 (4325)
7ft 1.6in (2175)
111.4
Kubota D1803-CR-TE4
16.9 (64)
Rubber canopy/cab: 4.87 (33.6) / 5.02 (34.6), Steel canopy/cab: 4.95 (34.1) / 5.10 (35.2)
40.4
11.1 (42) / 19.6 (74)
12.99in (330)
Rubber: 9900 (4490) / 10210 (4630), Steel: 10050 (4560) / 10360 (4700)
8ft 1.8in (2485) / 8ft 1.8in (2485)
16ft 8.2in (5085)
5ft 10.9in (1800)
24.4 (92.4)
1.8 (2.9)
3.1 (5.0)
